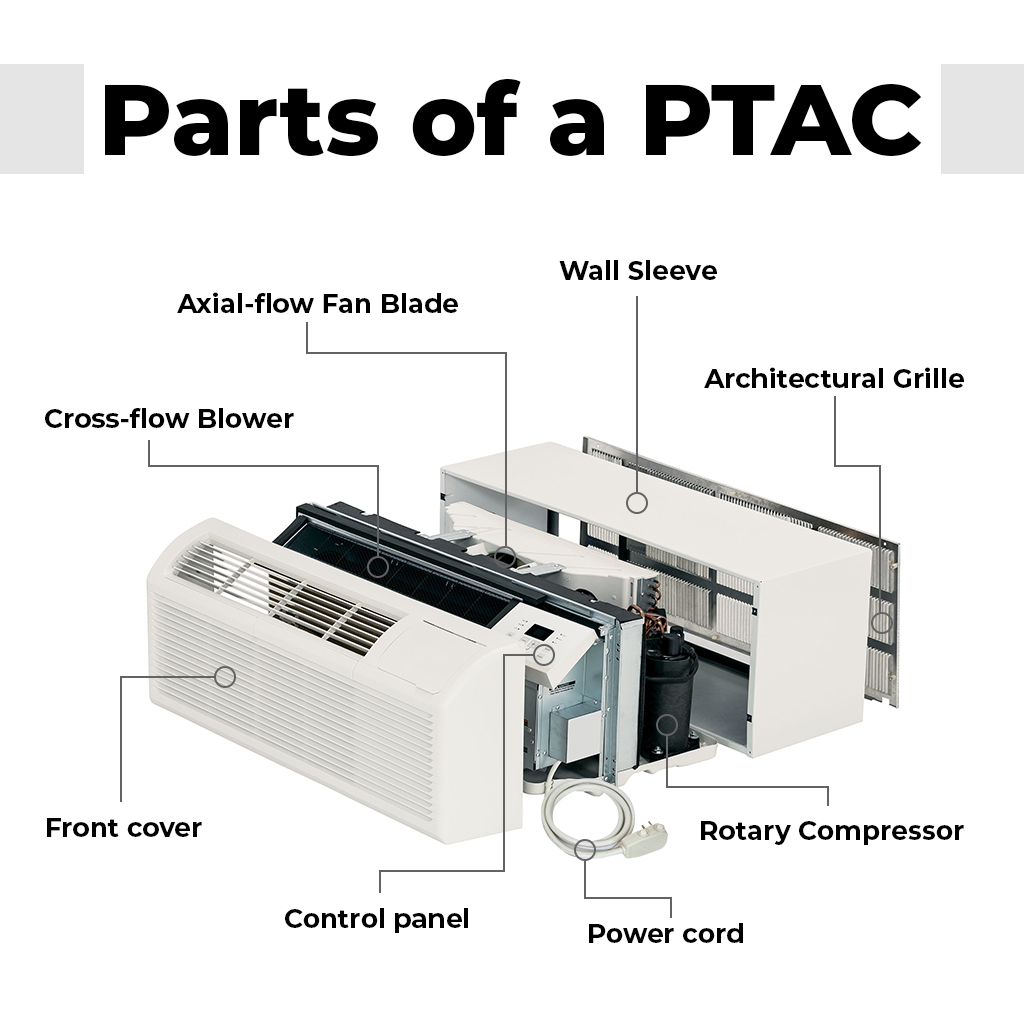

Can You Replace a PTAC Without Replacing the Wall Sleeve? Posted on October 21, 2026 At Total Home Supply, one of the most common PTAC-related questions we get is “Can you replace a PTAC without replacing the wall sleeve?” This question is particularly important when you’re replacing multiple PTACs for buildings like apartments, dormitories or hotels. It can mean the difference between saving thousands of dollars or investing in hundreds of new sleeves. In this guide, we explain when you can reuse a PTAC wall sleeve, when it should be replaced, and what to check before ordering a replacement PTAC. What is a PTAC Wall Sleeve? A PTAC wall sleeve or wall case is the permanently installed enclosure that sits inside the building’s exterior wall. The PTAC chassis slides into this sleeve. The sleeve supports the weight of the PTAC and provides the mounting interface for the chassis. It also works with the exterior grille to allow outdoor airflow while providing a weather-resistant opening through the wall. Most crucially, the sleeve allows the PTAC to be removed for service or replacement without rebuilding the wall. This modular design is why PTACs are widely used by hotels as well as buildings with many individually conditioned rooms. Instead of replacing the entire wall assembly every time the PTAC reaches the end of its service life, the chassis can often be exchanged while the sleeve stays in place. PTAC Chassis vs. PTAC Wall Sleeve Understanding the two components is essential when shopping for a replacement. The PTAC chassis is the actual heating and cooling machine. The chassis is the portion you normally replace when an old PTAC fails. The wall sleeve, sometimes also called the wall case, is the enclosure permanently mounted in the wall. It is simply the support structure into which the PTAC chassis is installed. Can You Replace a PTAC Without Replacing the Sleeve? Yes, you can often replace a PTAC without replacing the wall sleeve. In fact, one of the major advantages of packaged terminal air conditioners is that the indoor chassis can frequently be removed for maintenance or replacement, while the existing wall sleeve remains installed in the wall. However, note that a replacement PTAC is not automatically compatible with every existing sleeve. Before ordering a new unit, you need to verify the sleeve’s dimensions, depth, condition, rear grille, chassis compatibility, and the manufacturer’s installation requirements. When Can You Keep the Old Wall Sleeve? The standard PTAC sleeve exterior size is approximately 42 inches wide by 16 inches high, although depth and specific dimensions can vary. If the replacement PTAC fits the standard size even if it’s a different brand, then the sleeve can accommodate a replacement chassis from another manufacturer. For example, GE’s best-selling Zoneline PTACs fit the standard 42-inch × 16-inch sleeve dimensions for replacement applications. GE also notes that Zoneline PTACs can be installed in sleeves from other manufacturers because many PTACs use a similar basic footprint. Likewise, popular PTAC models from Amana and Friedrich are also compatible with the standard 42-inch × 16-inch sleeve size. But dimensions alone are not always enough. Other Things to Consider The existing wall sleeve should also be: ✔ Structurally Sound Checks for cracks or imperfections, no matter how small. The vibration over the years can cause structural defects in the frame. ✔ Properly Installed Years of repeated removals and as well operation may have dislodged the sleeve. Check it remains properly tilted and airtight. ✔ No Corrosion Rust is a sign to replace the wall sleeve, as the frame’s structural integrity is already compromised. We’ll discuss this in more detail below. When Should You Replace the PTAC Wall Sleeve? 1. The new PTAC is not compatible with the existing sleeve Chassis dimensions are not the only thing to consider. The new PTAC may have: Incompatible mounting points Shallower or deeper depth New grille requirements Different drainage requirements Manufacturer-specific compatibility restrictions Do not assume that two PTACs are interchangeable merely because both are approximately 42 × 16 inches. Always check the manufacturer requirements. 2. Incompatible depth This is one of the common mistakes we see, since depth is easy to overlook. Two sleeves can have the same width and height but different depths. For example, GE standard wall sleeves for its Zoneline PTACs have a depth of 13¾ inches, while deeper cases are also available for thicker walls. On other hand, Amana’s industry-standard PTAC sleeves are 14⅛ inches deep. Always take the actual sleeve depth into account, besides the width and height. 3. The sleeve is badly rusted If corrosion has weakened the metal, created holes, compromised mounting points, or damaged the bottom of the sleeve, it should be replaced. A damaged sleeve can fail to hold the PTAC unit securely, or allow water intrusion or air leaks. 4. Presence of structural damage While cosmetic imperfections can be disregarded, watch out for structural damage like holes, distorted panels, damaged flanges, or failed mounting points. 5. The existing sleeve is an unusual size The standard PTAC footprint is common, but not universal. Older buildings can have sleeves with dimensions that differ from today’s common standards. How to Check Wall Sleeve Condition Before sliding the new PTAC into the wall, look for these physical warning signs: 🗹 Rust Check especially around the bottom and exterior-facing portions of the sleeve. 🗹 Corrosion Coastal and humid environments can be particularly hard on metal components. 🗹 Holes A hole in the sleeve can allow unwanted air or water intrusion and may compromise structural integrity. 🗹 Bent or distorted metal A distorted sleeve can make it difficult to properly seat the new chassis. 🗹 Failed seals Check the perimeter where the sleeve meets the wall. 🗹 Loose mounting The sleeve should be securely attached to the building. 🗹 Slope The sleeve must be installed according to the manufacturer’s drainage requirements. What If the Existing Sleeve Is Too Shallow? Another common customer inquiry we get is “What if the wall sleeve is too shallow to fit the new PTAC?” Depending on the manufacturer and model, an adapter or sleeve extension may be available. These retrofit adapter kits allow newer, deeper PTAC chassis to work with older shallow sleeves. For instance, Friedrich offers sleeve adapter kits specifically designed to retrofit certain older sleeves for newer PTAC chassis. Whatever the case, always use the adapter specified by the PTAC manufacturer. Never use an improvised or DIY adapter from sheet metal or other materials. The Rear Grille Matters Too! The exterior grille works with the PTAC chassis and wall sleeve to vent heat outdoors. Whenever you replace a PTAC unit, also consider the rear grille, not just the wall sleeve. An incorrectly sized or incompatible grille can affect performance. Manufacturers specify particular grille requirements for their PTAC models. Check out our selection of PTAC grilles to see which ones are compatible with your unit. Also keep in mind that while a grille may be the correct size, the mounting holes may not line up from one manufacturer to another. It is always best to purchase a sleeve and grille from the same manufacturer. Ready to Replace That PTAC? Don’t remove a good wall sleeve simply because you are replacing the chassis. First determine whether the existing sleeve is compatible with the chosen PTAC. But if the sleeve is badly corroded, structurally damaged or incompatible with the new chassis, replacing it is the correct long-term solution. Measure, verify condition, and check compatibility. And if it’s time to replace that sleeve to house your new PTAC, we’ve got you covered. Mickey Luongo Mickey is the resident heating and air conditioning expert with over 15 years of experience in the industry.
