If you’re on the hunt for a new HVAC system, you may have encountered the term “mini split” several times throughout your research.

So, what is a mini split? A mini split is an efficient HVAC system that can provide both heat and air conditioning. It consists of an outdoor unit (called a compressor) and a single or multiple indoor units.

Unlike central heating and air conditioning systems, mini split systems do not require ductwork to operate. This makes them an appealing option for those who do not have existing ducts installed in the home.

Even if you already have ductwork installed, mini splits can be an attractive option for you. From their easy-to-install design to supreme energy efficiency, mini splits come with a multitude of benefits for businesses and homeowners alike.

But like most HVAC systems, there isn’t a single best type of mini split. We’ll explain the various mini split types to help you find the best mini split system for you, focusing on single vs multi zone mini splits, and the 7 different types of systems which include mini split ceiling cassettes and wall mount units.

Single vs. Multi Zone Mini Splits

Mini splits can be categorized as either single zone or multi zone mini splits.

Single Zone

Single zone mini split systems are designed to heat or cool a single room or “zone.” They consist of one outdoor compressor and one indoor unit.

Multi Zone

Unlike single zone mini splits, multi zone mini splits are designed to heat/cool multiple rooms or zones in a home. These systems consist of a single outdoor compressor and up to 8 indoor units.

Types of Mini Splits

While mini splits can be categorized as either a single zone or a multi zone, there are many other different types of mini splits available. Here, we’re giving you 7 different types and our recommendations, but our main focus will be on mini split ceiling cassette vs wall mounts.

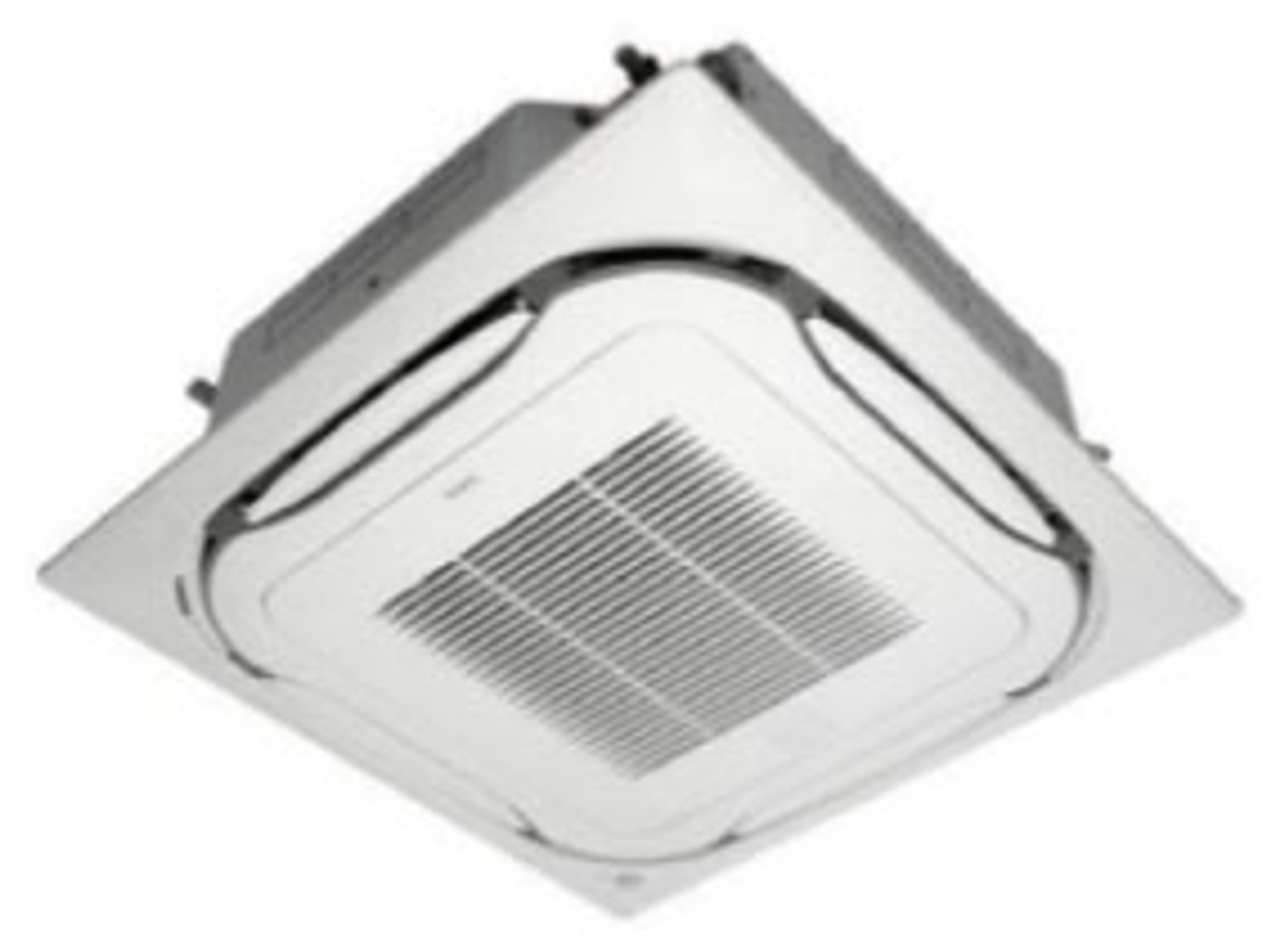

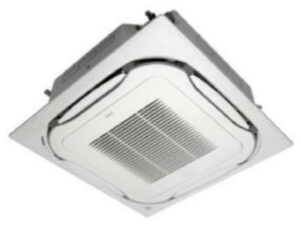

1. Ceiling Cassette

Image of LG LC127HV4 ceiling cassette mini split
The LG LC128HV4 ceiling cassette mini split.

Ceiling cassette mini splits consist of an outdoor unit and an indoor unit that mounts on the ceiling. The ceiling mounted design makes them a good alternative for those who want to keep their indoor unit out of sight, out of mind. As a bonus, the ceiling mounted design delivers a wider air flow than that of wall mounted units.

Our pick: LG LC128HV4 12,000 BTU Single Zone Ceiling Cassette Mini Split with Heat Pump

DISCONTINUEDLG LC128HV4 12,000 BTU Single Zone Ceiling Cassette Mini Split with Heat Pump 230 Volt - Energy Star
Price: $2,552.00 DISCONTINUEDLG LC128HV4 12,000 BTU Single Zone Ceiling Cassette Mini Split with Heat Pump 230 Volt - Energy Star

The LC128HV4 Single Zone Mini Split System is a great option for colder climates. This system will operate in cold conditions - down to -4°F in the heatin...

View Product



2. Wall Mount

Image of LG Art Cool mini split
The LG Art Cool is a wall mount mini split that hides behind a painting or photo for a discreet design.

Wall mount mini split systems are the most common type of mini splits. They are installed high up on a wall and pump out air into a room or area. Wall mount mini splits are ideal for all types of rooms and are also the least expensive mini splits on the market.

There are many different styles of wall mount mini splits available. The LG Art Cool is particularly unique since its indoor unit is hidden behind a picture frame, while the Daikin Emura offers a sleek, low-profile design.

DISCONTINUEDLG LMAN097HVP 9000 BTU Art Cool Gallery Indoor Unit Only - Heat and Cool
Price: $599.00 DISCONTINUEDLG LMAN097HVP 9000 BTU Art Cool Gallery Indoor Unit Only - Heat and Cool

This is the indoor unit only. It must be used with a compatible outdoor condenser.   The Indoor Art Cool Gallery Air Handler is available in 2 dif...

View Product

Daikin FTXR18TVJUW 18000 BTU Class Emura Indoor Wall Unit - Heat and Cool - White
Price: $979.00 Daikin FTXR18TVJUW 18000 BTU Class Emura Indoor Wall Unit - Heat and Cool - White

THIS IS THE INDOOR UNIT ONLY. PLEASE SEE DAIKIN-1518818A FOR THE FULL SINGLE ZONE SYSTEM (INCLUDING THE INDOOR AND OUTDOOR UNITS). IT CAN ALSO BE USED AS PART ...

View Product



3. DIY

MRCOOL DIY Single Zone Mini Split
MRCOOL DIY-12 12000 BTU DIY 3rd Gen Energy Star Series Single Zone 22 SEER Mini Split with Heat Pump

DIY mini splits are single zone wall mount mini splits that you install yourself. They include a pre-charged line set for installation and can be installed without special tools, making DIY mini splits appealing for those who want to save money on installation costs. They also include built-in Wifi access.

Our pick: MRCOOL DIY-12 12000 BTU DIY 3rd Gen Energy Star Series Single Zone 22 SEER Mini Split with Heat Pump

DISCONTINUEDMRCOOL DIY-12 12000 BTU DIY 3rd Gen Energy Star Series Single Zone 22 SEER Mini Split with Heat Pump WiFi SmartController 115 Volt - Choice Line Set Length
Price: $1,627.00 DISCONTINUEDMRCOOL DIY-12 12000 BTU DIY 3rd Gen Energy Star Series Single Zone 22 SEER Mini Split with Heat Pump WiFi SmartController 115 Volt - Choice Line Set Length

The only do it yourself (DIY), easy to install mini split air conditioner available.  Energy Star Qualified System with Wireless-Enabled Smart Controlle...

View Product

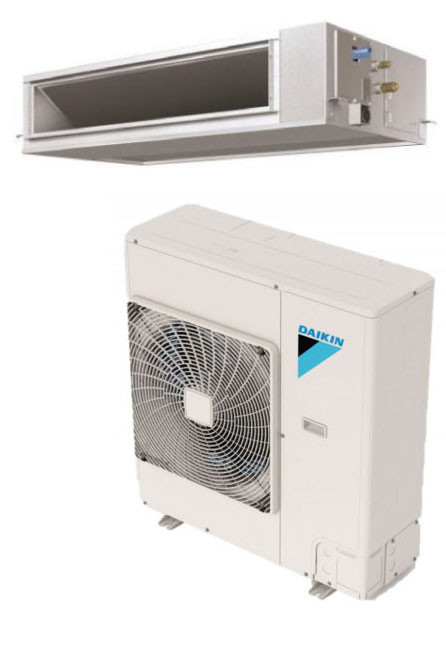

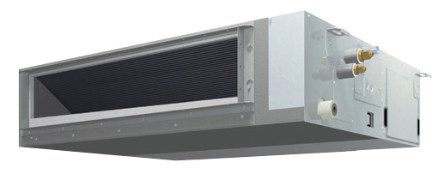

4. Concealed Duct

Image of LG LH247HV 24000 BTU Hi Static Ceiling Concealed Duct Single Zone System LG LH247HV 24000 BTU Hi Static Ceiling Concealed Duct Single Zone System LG LH247HV 24000 BTU Hi Static Ceiling Concealed Duct Single Zone System LG LH247HV 24000 BTU Hi Static Ceiling Concealed Single Zone System LG LUU247HV 24000 BTU Outdoor Unit Share This Item: LG Availability: Usually Leaves Warehouse in 2 - 4 Business Days Product Code: LG-LH247HV Price: ,614.00 Line Set Options Wall Brackets and Pads WHY ADD THIS TO MY ORDER? Select Warranty: 10 Year Parts / 10 Year Compressor / No Labor [Manufacturer's Warranty] New Leaf 5 Year Labor Warranty [9.00 more] UPGRADE YOUR COVERAGE WITH A LABOR WARRANTY Qty 1 Add To Cart OR Free Shipping on all Orders!
The LG LH247HV Single Zone Concealed Duct Mini Split System
These units are usually installed in the ceiling where they can be connected to one or more ducts. They are very flexible and can be ducted into one or more rooms. Ceiling concealed units are great for covering multiple bedrooms or a single large room that needs multiple vents.

Our pick: LG LH247HV 24000 BTU Hi Static Ceiling Concealed Duct Single Zone System

DISCONTINUEDLG LH248HV4 24000 BTU Hi Static Ceiling Concealed Duct Single Zone System
Price: $3,664.00 DISCONTINUEDLG LH248HV4 24000 BTU Hi Static Ceiling Concealed Duct Single Zone System

This is a single zone, 24,000 BTU system with a high static ducted indoor unit for ceiling-concealed installation. It features an inverter variable speed fan,...

View Product



5. Floor Standing

Image of Daikin FVXS12NVJU 12000 BTU Indoor Floor Standing Unit

Floor standing mini splits are another option for those who cannot mount a unit on a wall. These types of units rest on the floor up against a wall.

Our pick: Daikin FVXS12NVJU 12000 BTU Indoor Floor Standing Unit

Daikin FVXS12NVJU 12000 BTU Indoor Floor Standing Unit
Price: $905.00 Daikin FVXS12NVJU 12000 BTU Indoor Floor Standing Unit

  THIS IS THE INDOOR UNIT ONLY. PLEASE SEE DAIKIN-1513012-9 FOR THE FULL SINGLE ZONE SYSTEM (INCLUDING THE INDOOR AND OUTDOOR UNITS). IT CAN ALSO BE USED ...

View Product



6. Vertical Air Handler

Image of LG LVN240HV4 24000 BTU Multi-Position Air Handler
The LG LVN240HV4 24000 BTU Multi-Position Air Handler

Vertical air handlers are similar to central air in the sense that they connect to existing ductwork. However, they’re a much more efficient and cost-effective alternative to central air.

Our pick: LG LVN240HV4 24000 BTU Multi-Position Air Handler

DISCONTINUEDLG LVN241HV4 24000 BTU Multi-Position Air Handler - Heat and Cool
Price: $2,217.00 DISCONTINUEDLG LVN241HV4 24000 BTU Multi-Position Air Handler - Heat and Cool

THIS IS THE INDOOR UNIT ONLY. PLEASE SEE LV241HV4 FOR THE FULL SINGLE ZONE SYSTEM (INCLUDING THE INDOOR AND OUTDOOR UNITS) or LV241HHV4 with&nb...

View Product



Choosing Your Mini Split

As you can see, there are a variety of different types of mini splits available, and picking the right one can be a confusing process. Visit our mini split sizing calculator to determine the best size mini split for your needs, then check out our Multi Zone Mini Split Buying Guide before browsing our mini split systems.

Learning More About Mini Splits

Ductless Mini Split AC Installation: How to Install, DIY + Placement

Mini Split vs Central Air/Heat: Which is Right for You?

Electrical Specs for Installing Ductless Mini-Splits & HVAC Units

Mickey Luongo

Mickey is the resident heating and air conditioning expert with over 15 years of experience in the industry.

12 comments

  • Hello,

    Are there any setups where the compressor goes outside and mini-split portion sits in a widow (like a regular window AC unit)?

    Thanks,

    Robert

  • Hi, im looking for a 3 ton, 3 zone mini split, with an 18000btu ceiling cassette, and 2 9000btu wall mounts. I cant find anywhere, i cant find any ceiling cassette and Wall mount combination anywhere. Do they make them?

  • can a concealed or ceiling cassette work with any type of ceiling or just dropped ceilings? We would use them in bedrooms below attic.

    • For use in a bedroom ceiling below an attic, special framing would be required as the unit is wider than a standard joist bay.

  • How far can the lines travel from the compressor to reach other rooms of the house for wall mounted units? Would they be in the wall or wrap around the house?

    • Maximum line length varies based on the specs of the system you are using. Lines can be run in the wall or on the outside of the house.
